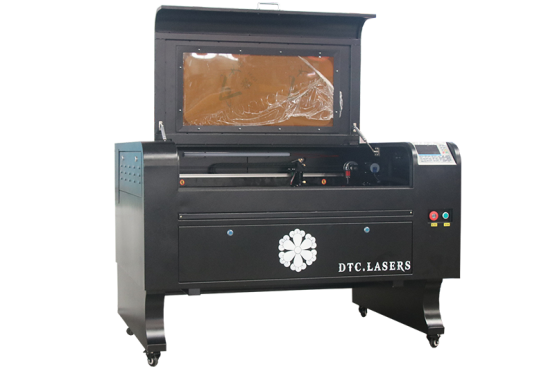

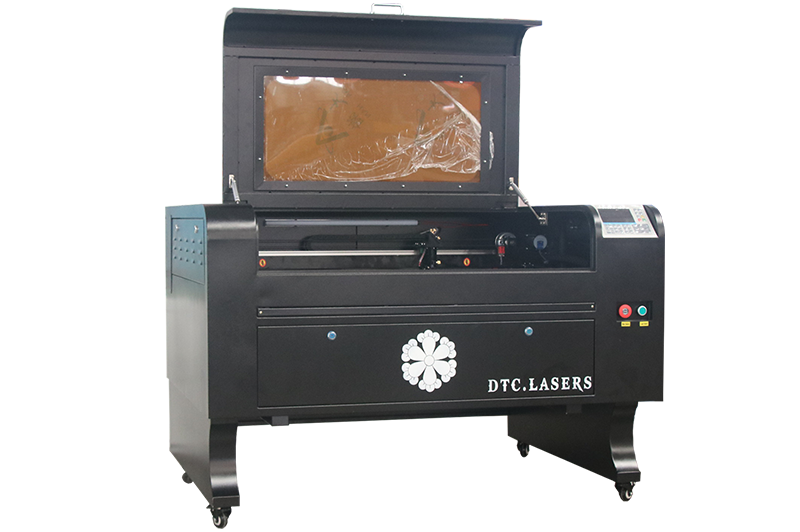

6090 Co2 laser cutting engraving machine

This machine with rotary device, enables you to engraving wood round materials like wood music instrument, wood pillar, wood round materials , etc. This machine also can do cut work.
DBL6040 laser engraving machine can engraving perfect pictures, portrait on the surface of all kinds and all shapes of materials, make all kinds of craft works , also make diversified marks and brands . This is a machine with good performance and reasonable price.
The imported linear guide rail and step motor with reduce speed driver system to assure cutting incision more smooth
The imported focus lens and metal reflect mirror from America have strong cutting ability and high precision
We can supply different color shapes for your need
Applicable materials
Non-metal materials such as double color board, acrylic glass, bamboo and wood, rubber, marble, granite and tiles, leather etc.
Applicable industry
Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry etc.


1.Model DBL-6090
2.Working area. 60cm*90cm / 35in*25in (L*W)
3.Laser power 40W/60W/80W/90W/130W
4.Laser type. CO2 sealed laser tube water-cooled
5.Engraving speed 25-60000mm/min
6.Cutting speed 50-10000mm/min
7.Power supply. 220V±10% /50HZ , 110V±10%//60HZ
8.Min.character Letter 1.0 x 1.0mm
9.Graphic format supported. BMP, PLT, DST, DXF, AI,CDR
10.Software supported. CorelDraw, PhotoShop, AutoCAD
11.Laser Output Control. 1-100% software setting
12.Highest precision. 2500DPI
13.Resolution ratio. <0.01mm
14.Location precision. <0.01mm
15.Working temperature. 5°C-40°C
16.Operating humidity. 5%-95%(without condensed water)
17.Equipment Dimension. 1050mm*750mm*970mm/41in*30in*38in (L*W*H)
18.Net Weight. 150kg
19.Optional parts. Up-down worktable, Red light pointer, Auto focus, Rotary device

Professional Service
From producing in our factory to shipping the goods directly to your port or company, we supply all-inone service for our customers.
With the rich experience of dealing with shipping issue and custom clearance, we can make the most economical delivery plan for you and ensure the quick leading time.
No matter your quantity is our MOQ or very big, we take each customer as the only one.
Warranty for the machine
1. Two years quality guarantee for the main parts of the machine, excluding consuming parts, and the main parts shall be changed free of charge during the warranty time
2. Lifelong maintenance for the machine, and lifelong technical support from sophisticated English-speaking engineer team.
3. Free training course at our plant
4. We will provide the machine consuming parts with factory price when you need replacement.
5. 12 hours online service each day, free technical support.


no days off
