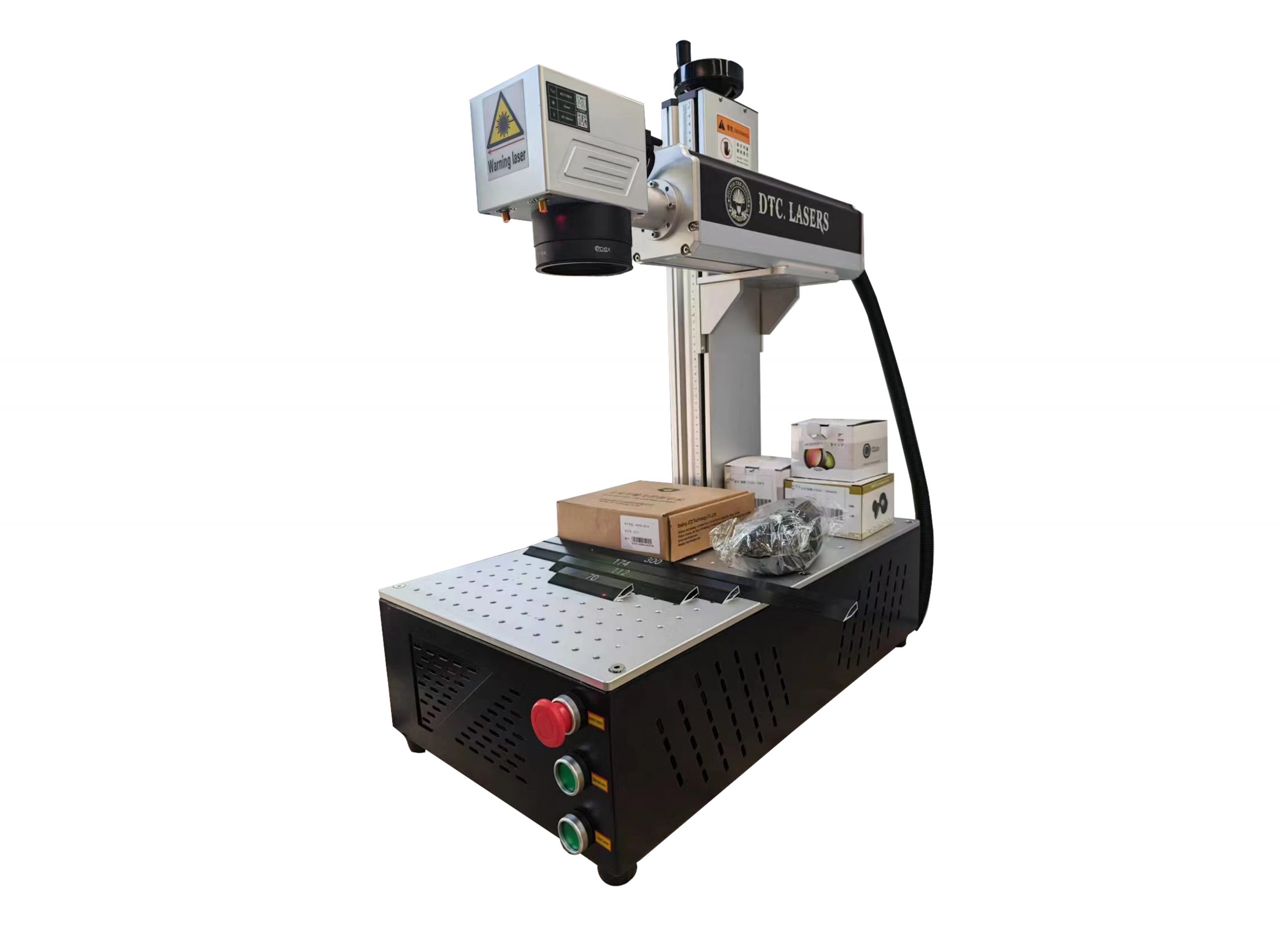

DBF-30/50/60 COMPACT FIBER LASER
Technical Parameters
| Product |
Fiber Laser Marking Machine |
|
Fiber Laser Brand |
JPT /Raycus |
|
Fiber Laser Lifetime |
100,000 hours |
|
Fiber Laser Power |
30/50W/60Watt |
|
Beam Quality |
M2≤1.2 |
|
Max. Marking Speed |
5000mm/s |
|
Fiber Laser Wavelength |
1064nm |
|
Marking Area |
Standard: 70mm*70mm,175mm*175mm, 300mm*300mm |
|
High-speed Galvanometer |
Yes |
|
Lens |
F-Theta Lens |
|
Fiber Laser Repetition Frequency |
1KHz-600KHz/50-100Khz |
|
Minimum character |
0.05mm |
|
Marking Depth |
≤5mm |
|
Repeated Accuracy |
±0.001mm |
|
Minimum Linewidth |
0.01mm |
|
Volt |
110V, 220V, |
|
Cooling Mode |
Air Cooling |
|
Graphic Format Supported |
PLT, DXF, DXP, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF, DST, DWG, LAS, etc |
|
Software Supported |
CORELDRAW, AUTOCAD, PHOTOSHOP, etc |
|
System Supported |
Windows, |
|
Operating Ambient Temperature |
5°C-45°C |
|
Marterial Supported |
Metal and Some Non-metal |
|
Marking Software |
EZCAD2/Lightburn |
|
Tower |
500mm |
|
Training Videos, User Manua |
Yes |
|
Warranty |
2 years |
|
Fiber Test Results |
Yes |
|
Certificates |
FDA, CE, ISO, CCC, PSE, IC, RoHS, EUT, FC |
|
Control Interface |
Standard USB 2.0/3.0 |
|
Optional |
Laptop, Rotary Device |
Application Show
Applicable Fields
being widely used for figure and character mark & mass production line, such as,
♦ computer accessories ♦ industrial bearings ♦ clocks and watches ♦ operation integrated circuit chips
♦ aerospace components ♦ military products ♦ household appliances ♦ electronic products ♦ hardware tools
♦ wire and cable ♦ food packaging ♦ all kinds of auto parts ♦ dies ♦ jewelry ♦ tobacco ♦ etc
