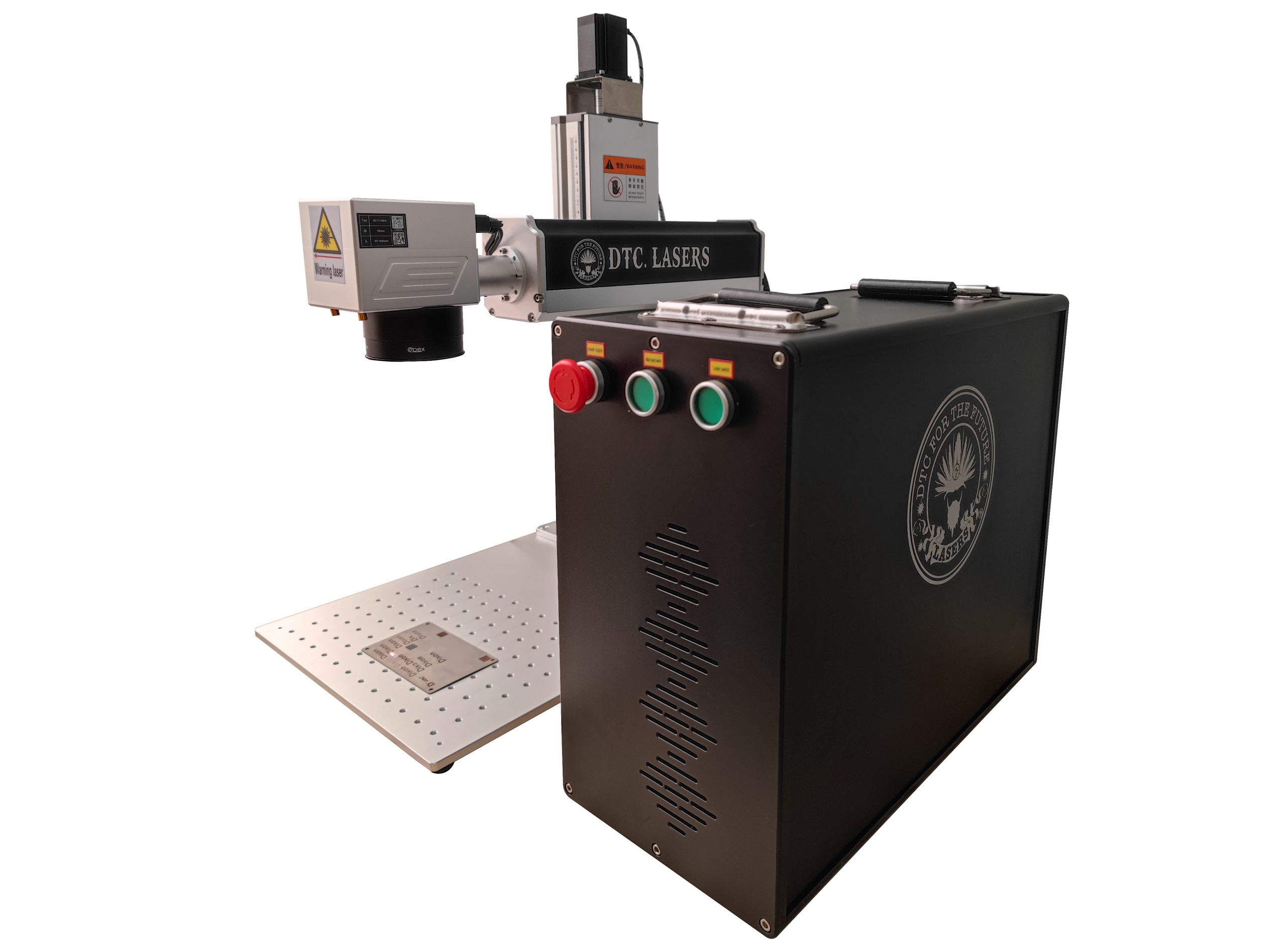

DBF-50 2.5D FIBER LASER

Description

Main Features
♦ Narrow laser beam, less work materials consumption, small heat affected zone.
♦ Non-contact processing, no damage to products, no tool wear, high-quality marking.
♦ High processing efficiency, controlled by computer, being easy to realize automation.
♦ Processing metal & non-metal materials, especially the materials of high hardness, high melting point and
brittleness.
♦ Being qualified for bad work environment, being with very strong tolerance to dust, shock, impact, humidity
and temperature.

High-speed Galvanometer.
♦ Consist of optical scanner and servo controller, adopt new technology, new material, meliorative operating principle.
♦ Electric torsion bar replace traditional elastic material’s torsion bar, greatly improve service life and reliability of long time work.
♦ Vastly reduce delay, enhance marking speed, high repetition frequency.

Fiber Laser Transmitter.
♦ Efficient light produced by electricity, consumed power is less than 500W.
♦ Imported pulsed type, TEMOO output,  focusing spot diameter is less than 20um.
♦ Being suitable for subtle and precise marking.

Fiber Laser Power Supply.
♦ 24V output voltage, alternating current.
♦ Being installed in control box of marking machine.

Field Lens.
♦ Excellent focusing capability.
♦ More accurate.
♦ Improve marking quality on rough surface.
♦ Uniform focusing spot.

Three Sets of Switch Power Supply.
♦ Stable swith power supply makes fiber laser output smoothly.
♦ Make alternating current turn into stable direct current, output rectification and smoothing.

High-quality Material.
♦ Durable air plug.
♦ Safer fine copper’s cable core.

Fiber Laser.
♦ 100,000 hours service life, about 11years.
♦ 24 hours continuous working.
♦ Same effect, excellent stability.
♦ No need to maintain, being suitable for hostile environment.

Control Card.
♦ Possess the function of graph aligning, red light preview, external transmit to read date.
♦ Being suitable for marking on the fly.
♦ Providing hundreds of automatic marking and feeding program.
♦ Being compatible with CORELDRAW, AUTOCAD, PHOTOSHOP, etc.
♦ Supporting PLT, PCX, DXF, BMP etc, SHX, TTF etc of word stock can be used directly.
♦ Supporting automatic coding, serial number, batch number, date, bar code, QR code, automatic number jumped, etc.
♦ Graph, Chinese characters, number, English letters etc can be designed freely,.

Technical Parameters

Application Show
Applicable Fields
being widely used for figure and character mark & mass production line, such as,
♦ computer accessories ♦ industrial bearings ♦ clocks and watches ♦ operation integrated circuit chips
♦ aerospace components ♦ military products ♦ household appliances ♦ electronic products ♦ hardware tools
♦ wire and cable ♦ food packaging ♦ all kinds of auto parts ♦ dies ♦ jewelry ♦ tobacco ♦ etc

FAQ
1 How can I get the training after I order the machine?
A) Machine manual and operation CD will be supplied with you for each machine
B) We have processional engineer team to supply 24 hours service online
C) Engineer available to service machine overseas
D) Welcome come to our factory to get training in any time

2 How is the packing?
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.

3 I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine.
If there is still any question, we can talk through phone or Skype.
Moreover, you could come to our factory to learn how to use it before shipment.
Our technician will give you professional guidance.

4 How could I know if this machine is suitable for me?
Before ordering, we will provide every details of the machine for your reference, or you could
tell us your detailed requirements, our technician will recommend the most suitable machine
for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.
